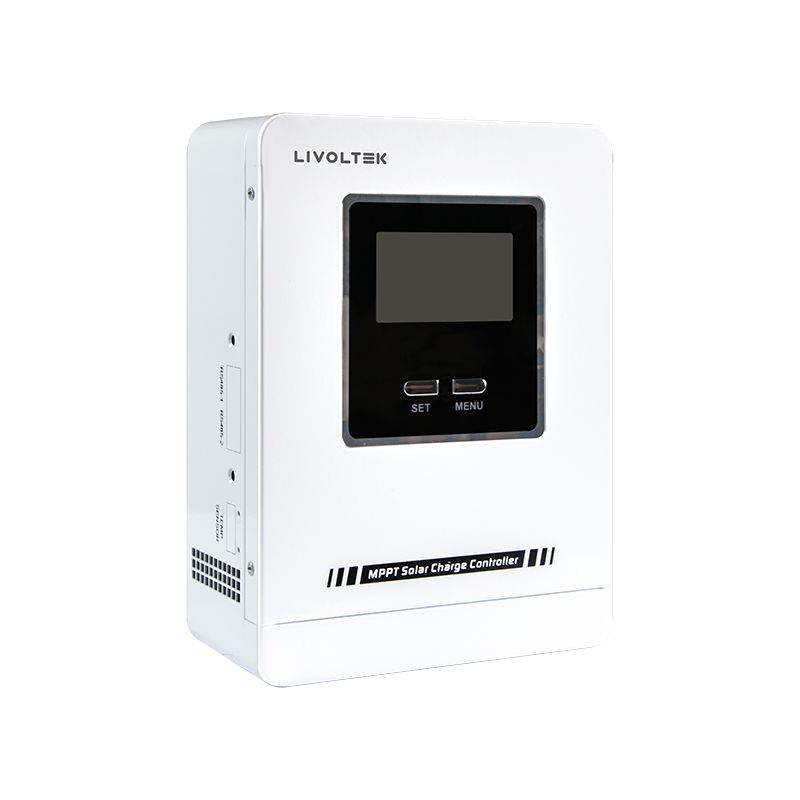

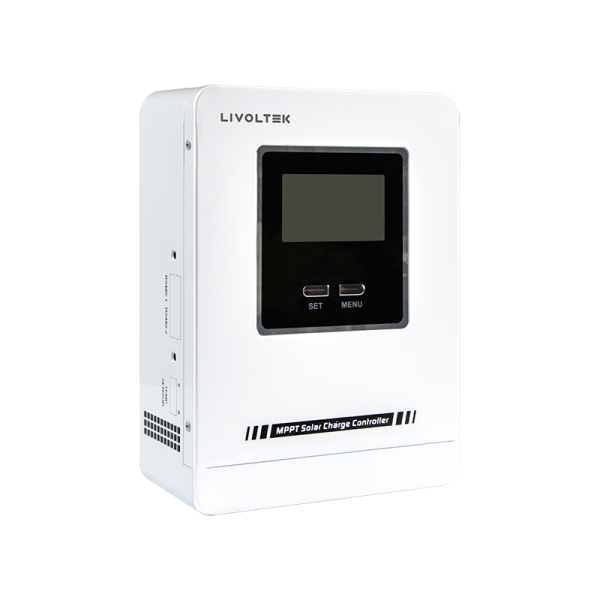

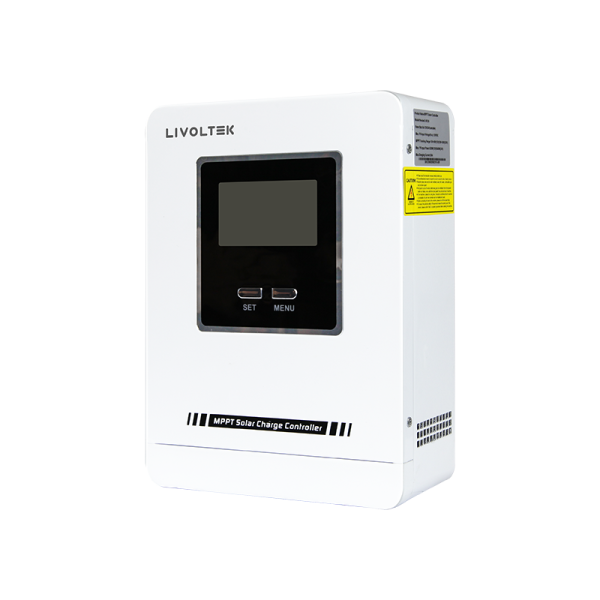

Off-grid: MPPT Solar Controller 30A Model SCC-30124

SKU SCC-30124 Category Tag

Price:

$0.00

MPPT (Maximum Power Point Tracking)Solar Charge Controller offer an efficient, safe, multi-stage recharging process that prolongs battery life and assures peak performance from a solar array. Each Charge Controller allows customized battery recharging.

Features

  • Tracking efficiency up to 99%
  • Intelligent battery management function, extending battery life
  • Full range of electronic protection functions
  • It supports a variety of lead-acid batteries and lithium batteries, and users can customize the charging and discharging parameters
  • Ultra wide photovoltaic input voltage range, more convenient system configuration

Model

SCC-30124

Rated Current

30A

Max. PV Input Power

12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A); 24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A); 48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)

Max. PV Input Voltage(Voc)

120V@12V/24V , 180V@48V

MPPT Voltage Range

12V system: 15V-80V; 24V system: 30V-100V; 48V system: 60V-140V

Max. PV Current/Short Circuit Current

14A/17A

Battery Type

Lead acid battery/Lithium battery (Users can customize charging parameters for other types of batteries)

Floating/Charge Voltage

13.8V/14.2V/Single battery

Charging Mode/Method

MPPT maximum power point tracking/Three stages: CC(MPPT); CV; CF

Protection

Over-voltage/under-voltage/over-temperature/Anti-reverse connection protection

Communication with BMS

RS485

Conversion Efficiency

>98%

Machine Size(L*W*H)

214*155*72.8 mm

Thermal Method

Cooling fan in intelligent control

Type Of Mechanical Protection

IP20

Operating Temperature

-15°C~+50°C

Display

LCD+APP

Standard Warranty

2 Years
